Inert Gas Gen (Nitrogen Generator PSA)

Key Features

• High Nitrogen Purity
  Nitrogen purity can be configured according to application requirements, typically ranging from 95% to 99.999%+.
• Continuous On-Site Nitrogen Supply
  Generate nitrogen directly at the point of use, reducing dependence on nitrogen cylinders or bulk liquid nitrogen.
• Advanced PSA Technology
  The pressure swing adsorption process provides efficient and reliable separation of nitrogen from compressed air.
• High-Quality Carbon Molecular Sieve
  High-performance CMS provides excellent oxygen adsorption capacity and stable nitrogen production.
• Automatic Operation

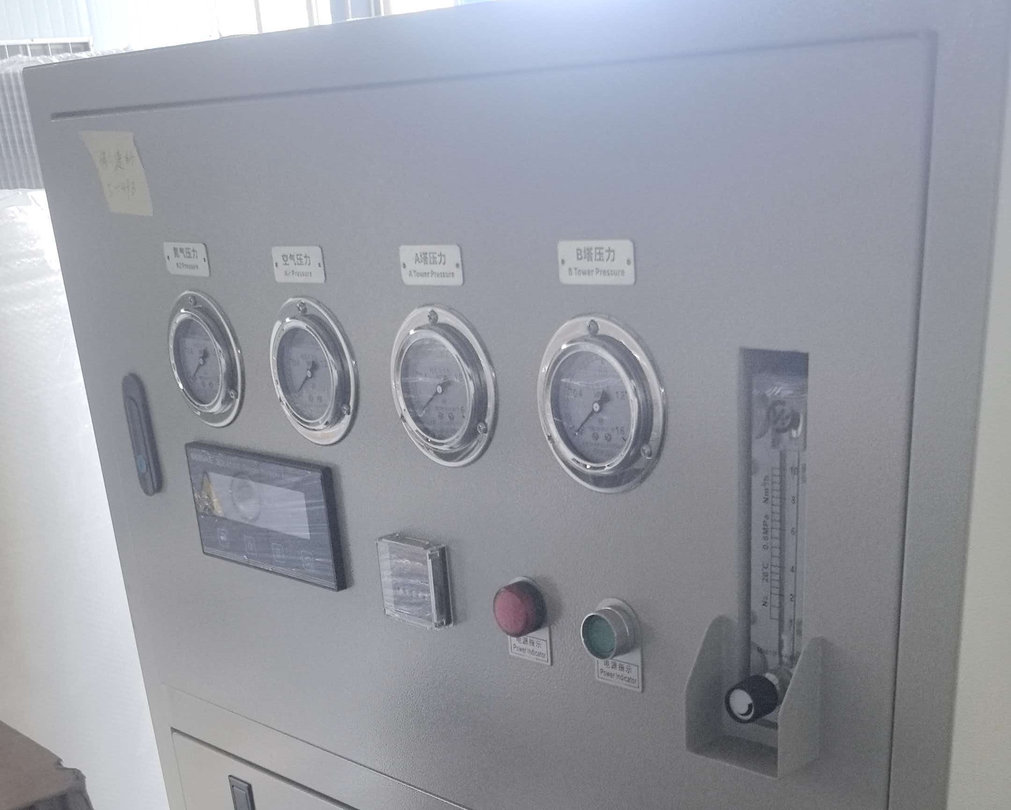

  PLC-based automatic control enables continuous operation with real-time monitoring of key operating parameters.
• Adjustable Purity and Capacity
  Nitrogen purity and production capacity can be customized according to the customer’s actual requirements.
• Compact and Space-Saving Design
  The integrated system requires relatively little installation space and is suitable for industrial facilities with limited space.
• Low Operating Cost
  Nitrogen is generated from ambient air, helping reduce cylinder rental, transportation, storage and repeated nitrogen purchasing costs.
• Reliable and Low Maintenance
  The system is designed for continuous industrial operation with routine maintenance requirements.

  How Does a PSA Nitrogen Generator Work?

  Air Compressor → Air Treatment System → PSA Nitrogen Generator → Nitrogen Buffer Tank → Nitrogen Booster → Nitrogen Storage / Application

  The PSA Nitrogen Generator uses compressed air as the raw material.

  First, atmospheric air is compressed and treated through an air purification system to remove moisture, oil and solid particles. The purified compressed air then enters the PSA adsorption towers containing Carbon Molecular Sieve (CMS).

  Under pressure, the CMS preferentially adsorbs oxygen and other unwanted components, while nitrogen passes through the adsorption bed as the product gas.

  The system normally uses two adsorption towers operating alternately. While one tower is producing nitrogen, the other tower is depressurized and regenerated. The adsorption and regeneration cycles are automatically controlled to provide a continuous supply of nitrogen.

  This process allows nitrogen to be generated directly on site without the need for frequent delivery and storage of nitrogen cylinders or liquid nitrogen.

  Typical Technical Specifications

  Parameter	Specification
  Nitrogen Generation Technology	PSA – Pressure Swing Adsorption
  Adsorbent	Carbon Molecular Sieve (CMS)
  Nitrogen Purity	95% – 99.999%+
  Nitrogen Capacity	Customized according to requirements
  Outlet Pressure	Customized according to requirements
  Dew Point	Typically -40°C to -70°C
  Control System	PLC Automatic Control
  Operation	Automatic / Continuous
  Raw Material	Compressed Air
  Installation	Indoor / Outdoor solution available
  Nitrogen Storage	Optional Buffer / Storage Tank
  Booster System	Optional
  Remote Monitoring	Optional

  Note: Actual nitrogen capacity, purity, pressure, dew point, air consumption and system dimensions depend on the selected model and customer’s application requirements.

  Main Applications

  Food & Beverage Industry

  Nitrogen is widely used for Modified Atmosphere Packaging (MAP), food preservation, beverage production and packaging. Nitrogen helps reduce oxygen exposure and extend product shelf life.

  Oil & Gas Industry

  PSA nitrogen generators can provide nitrogen for tank blanketing, pipeline purging, pressure testing, inerting and other applications requiring a non-reactive gas.

  Chemical & Petrochemical Industry

  Nitrogen is used for inerting, blanketing, purging and protecting oxygen-sensitive materials and processes.

  Metallurgy & Heat Treatment

  High-purity nitrogen can be used to create controlled atmospheres for heat treatment, annealing, brazing and other metal processing applications.

  Electronics Industry

  High-purity nitrogen is used in electronics manufacturing, soldering, PCB production and other processes where oxygen and moisture need to be controlled.

  Pharmaceutical Industry

  Nitrogen can be used for product protection, tank blanketing, packaging and other pharmaceutical manufacturing processes requiring controlled atmospheres.

  Laser Cutting

  Nitrogen can be used as an assist gas for laser cutting applications where a clean cutting process and controlled oxidation are required.

  Mining & Industrial Safety

  Nitrogen can be used for inerting and oxygen reduction applications in certain mining and industrial safety processes.
