Gas generator sets represent a new generation of energy-efficient and eco-friendly power generation equipment, classified as clean energy power units. Fueled by combustible gases—such as natural gas, biogas, coalbed methane, biomass gas, and LPG—these units offer a power output range spanning from 20 kW to 2000 kW. The entire product line incorporates mature gas combustion technology, making it adaptable to a wide variety of combustible gas operating environments. Compared to diesel generator sets, these units offer cleaner operation, lower energy consumption, and reduced noise levels. Consequently, they have become the preferred choice for power generation in factories, livestock farms, oil and gas fields, biogas projects, new energy power stations, and distributed power systems.

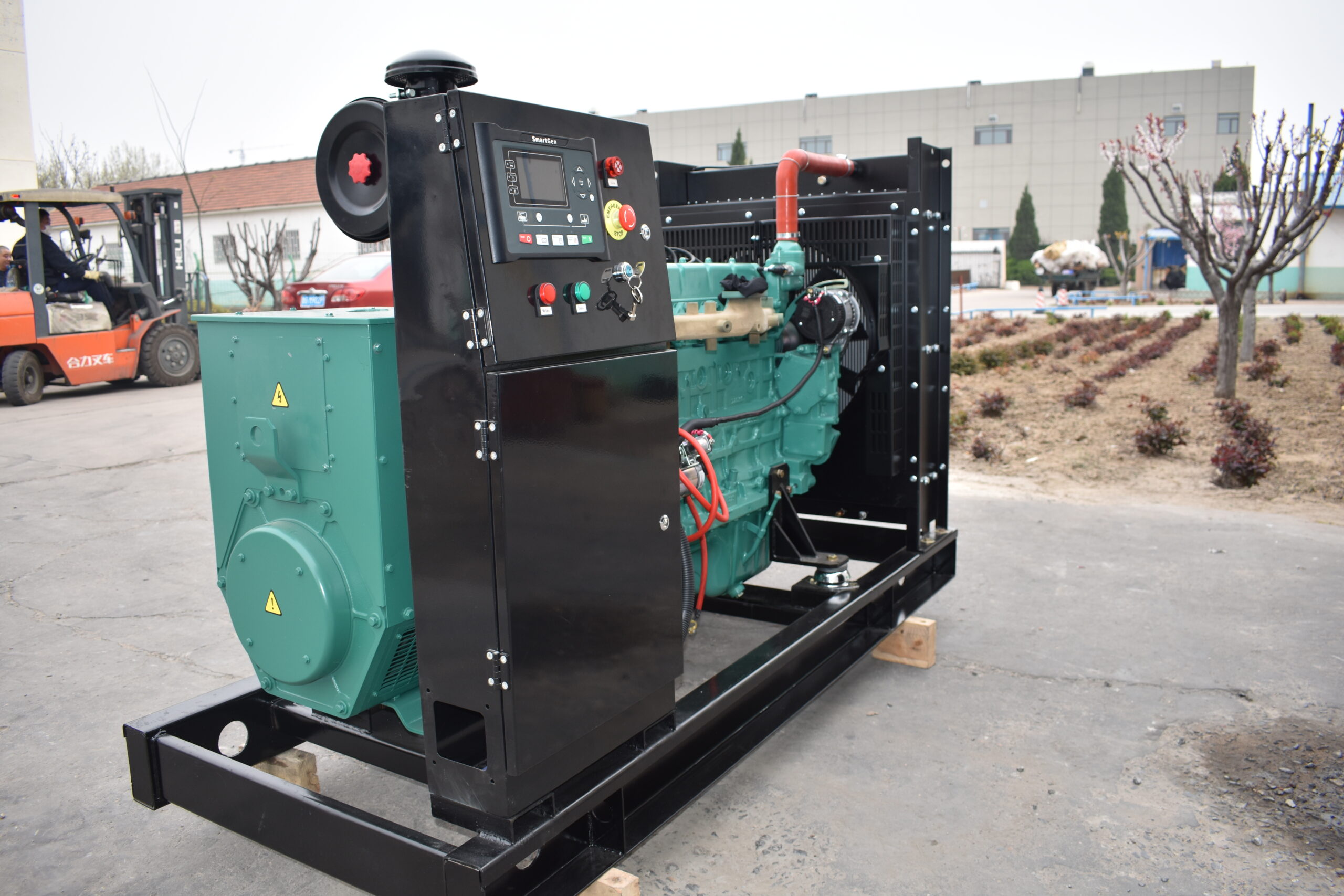

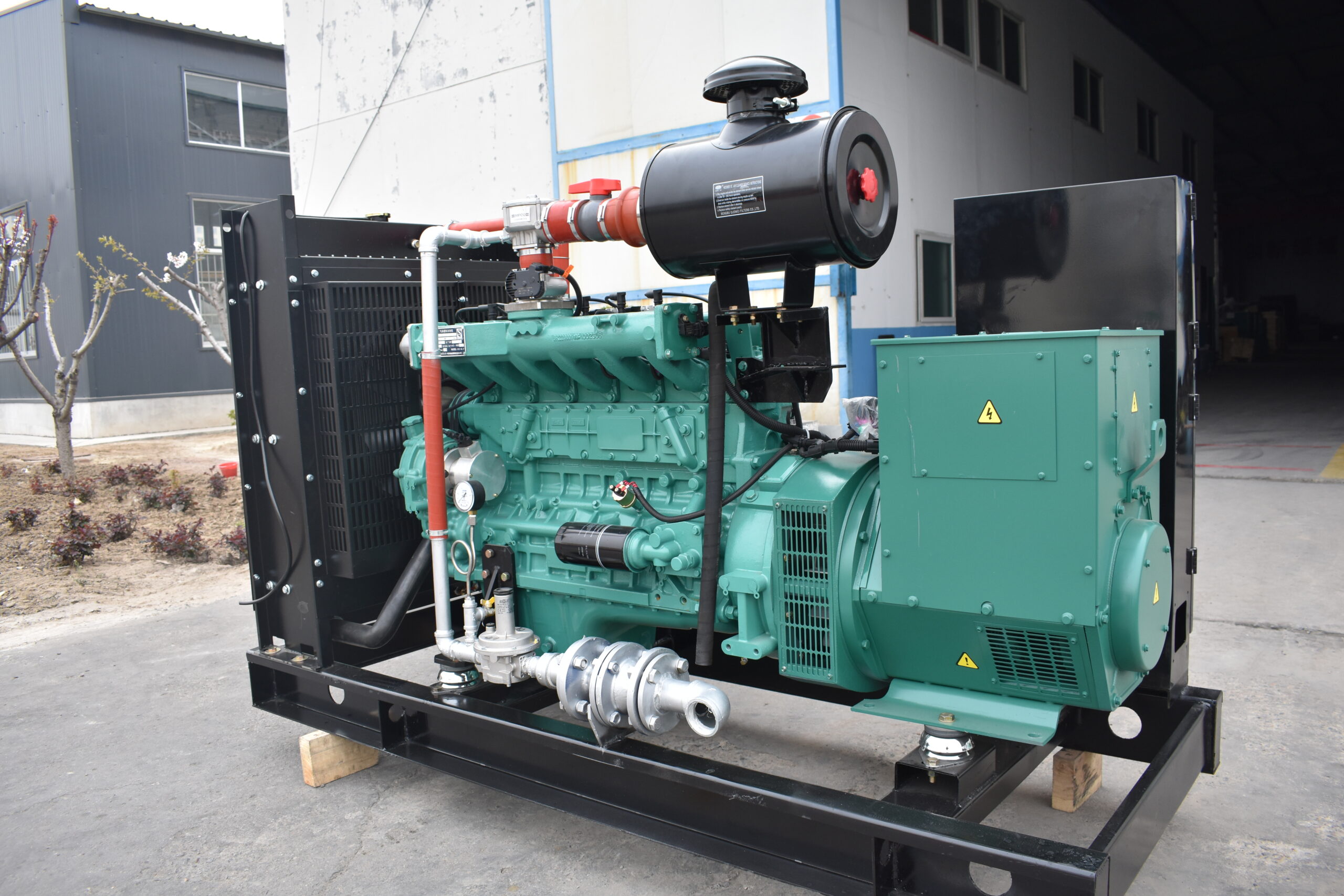

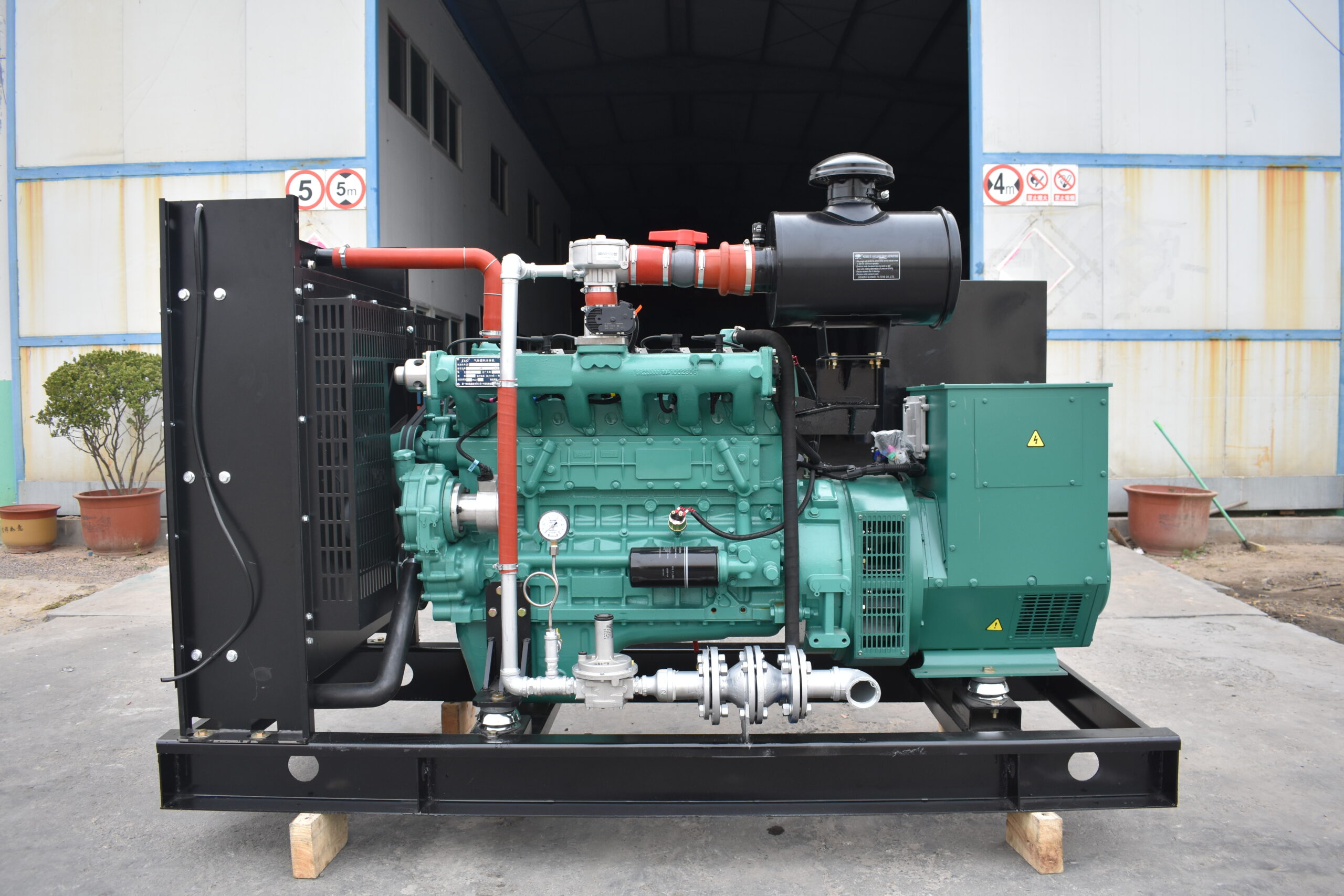

| 62.5kVA Gas Generator set Parameters：Gensyt Power | |
|---|---|
| Genset Model：DCEC62GST-GS | Steady State Voltage Regulation： ≤±0.5% |
| Rated Power：62.5kVA | Transient Voltage Regulation： ≤±15% |
| Standby Power : 68.5kVA | Voltage Fluctuation：≤±0.5% |
| Voltage：400V/230V | Voltage Waveform Distortion Degree： ≤5% |
| Rated Current：90A | Voltage Settling Time： ≤1.5sec |
| Rated Speed (r/min)：1500/1800 (50/60Hz) | Steady State Frequency Regulation： ≤±2% |
| Start Method：electrical starting | Transient Ffrequency Regulation： ≤±5% |
| Fuel Consumption at 100% Load：0.3m³/Kw·h | Frequency Settling Time：≤ 3sec |
| Frequency Fluctuation Rrate(%):≤±0.5% | Noise(LP1m): 100dB（A） |
| Size(mm):2200*900*1400 | Weight：1050KG |
| Gas Engine Parameters ： | |
| Brand: Cummins | |
| Model: B6.7N | |
| Rated Power: 68.5kVA | |
| Speed regulation mode: electronic speed regulation/mechanical speed regulation | |
| Displacement: 5.9L | |
| Bore*Stroke: 102mm*120mm | |
| Type: 4 Stroke, Water Cooling, Spark Ignition, 24V DC Starting | |
| Cooling method: closed water cooling | |
| Starting mode: DC24V electric start | |
| Rated Speed (r/min)：1500/1800 (50/60Hz) | |
| Alternator Parameters: | |
| Brand: Faraday | |
| Model: FD2C | |
| Output frequency: 50Hz / 60Hz | |
| Voltage: 400V/230V | |
| Protection Level/Insulation Class：IP23/H | |
| Excitation mode: Self-excited, Brushless, AVR | |
| Phase/Connection：3 Phase 4 Wire, Y-connection, 0.8 Power Factor (Cosφ) | |
| Control System：The standard control panel is with functions including manual keys, alarms, protections, auto start and shut down, showing running parameters in LCD Display by DEIF SGC420 Controller. | |
| Options：Special requirements for Container, ATS, Synchronizing Parallel panels and CHP are available for options. | |
| The standard configuration of the generator set is as follows: | |
| Ø Direct injection internal combustion engine (diesel); | |
| Ø AC synchronous generator (single bearing); | |
| Ø Suitable for environment: 40°C-50°C radiator water tank, belt-driven cooling fan, fan safety cover; | |
| Ø Power generation output air switch, standard control panel; | |
| Ø Steel common base of the unit (including: vibration damping rubber pad of the unit); | |
| Ø Dry air filter, diesel filter, lubricating oil filter, starting motor, and equipped with self-charging generator; | |
| Ø starting battery and battery starting connecting cable; | |
| Ø Industrial silencers and standard parts for connections | |
| ØRandom data: diesel engine and generator original technical documents, generator set manuals, test reports, etc. | |
| Optional Accessories: | |
| Ø Oil, diesel, water jacket heater, anti-condensation heater | Ø Split daily fuel tank, integrated base fuel tank |
| Ø Battery float charger | Ø Rainproof unit (cabinet) |
| Ø Self-protection, self-starting unit control panel | Ø Silent unit (cabinet) |
| Ø With “three remote control” function unit control screen | Ø Mobile Trailer Power Station (Cabinet Trailer) |
| ØATS automatic load conversion screen | Ø Silent mobile power station (cabinet trailer) |
| Warranty period: | |
| 12 months or 1,500 hours of cumulative operation after the commissioning and acceptance of the unit (domestic); | |
| Due to product quality problems, free maintenance or replacement parts are implemented, and lifelong paid services are provided! | |
| (Wearing parts, common parts, man-made damage, negligent maintenance, etc. are not covered by the warranty) | |
| If it is adjusted by the original factory, the original warranty regulations will be implemented! | |
| Executive Standards: | |
| Quality management system ISO9001 | |
| The industry implementation standard GB/T2820.1997 | |
| Shipping Method: | |
| Door-to-door pick-up, special car delivery, car stowage, etc | |
Due to continuous model updates, the information above is provided for reference only and shall not be deemed the basis for final delivery. The company reserves the right to make final modifications without further notice.
