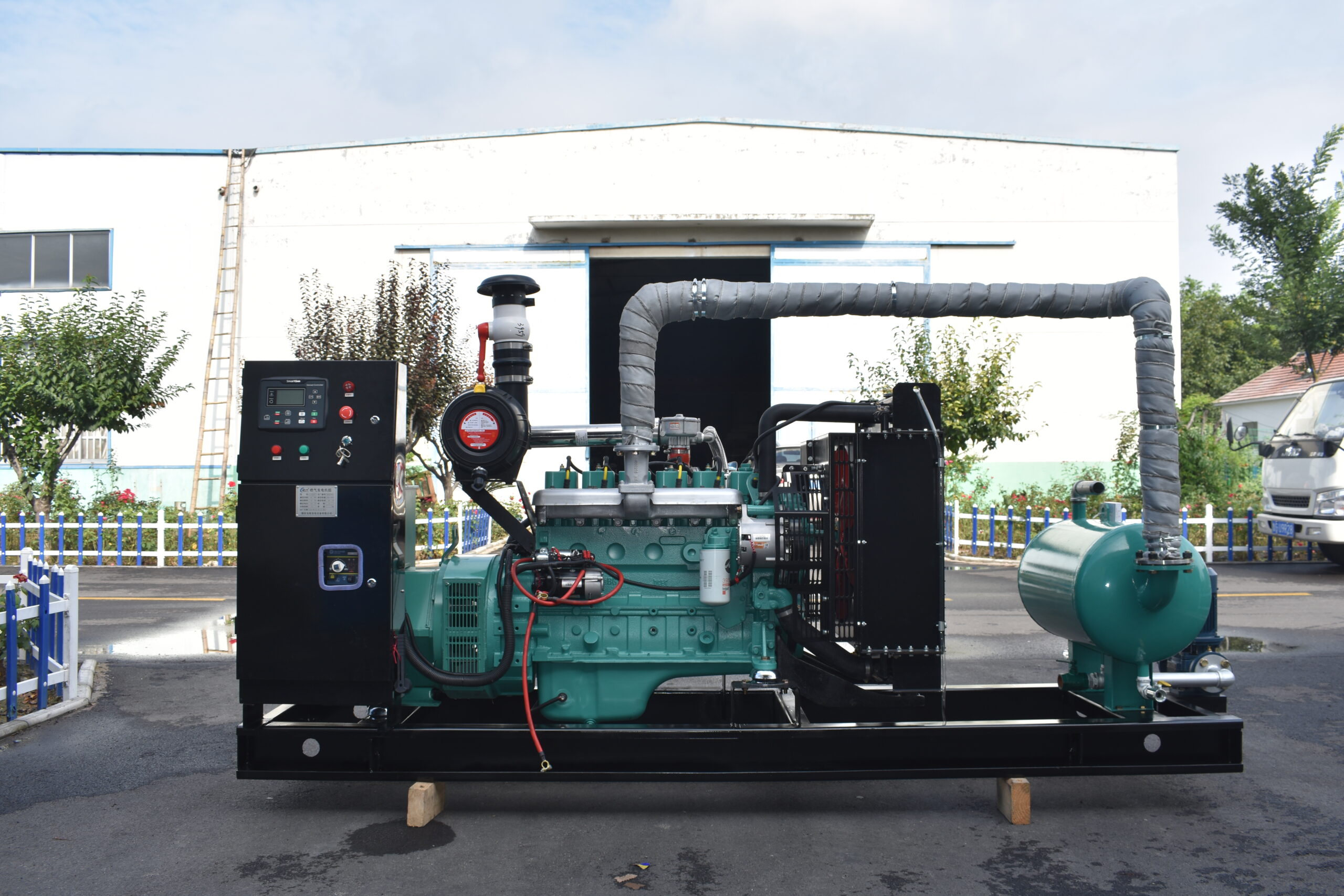

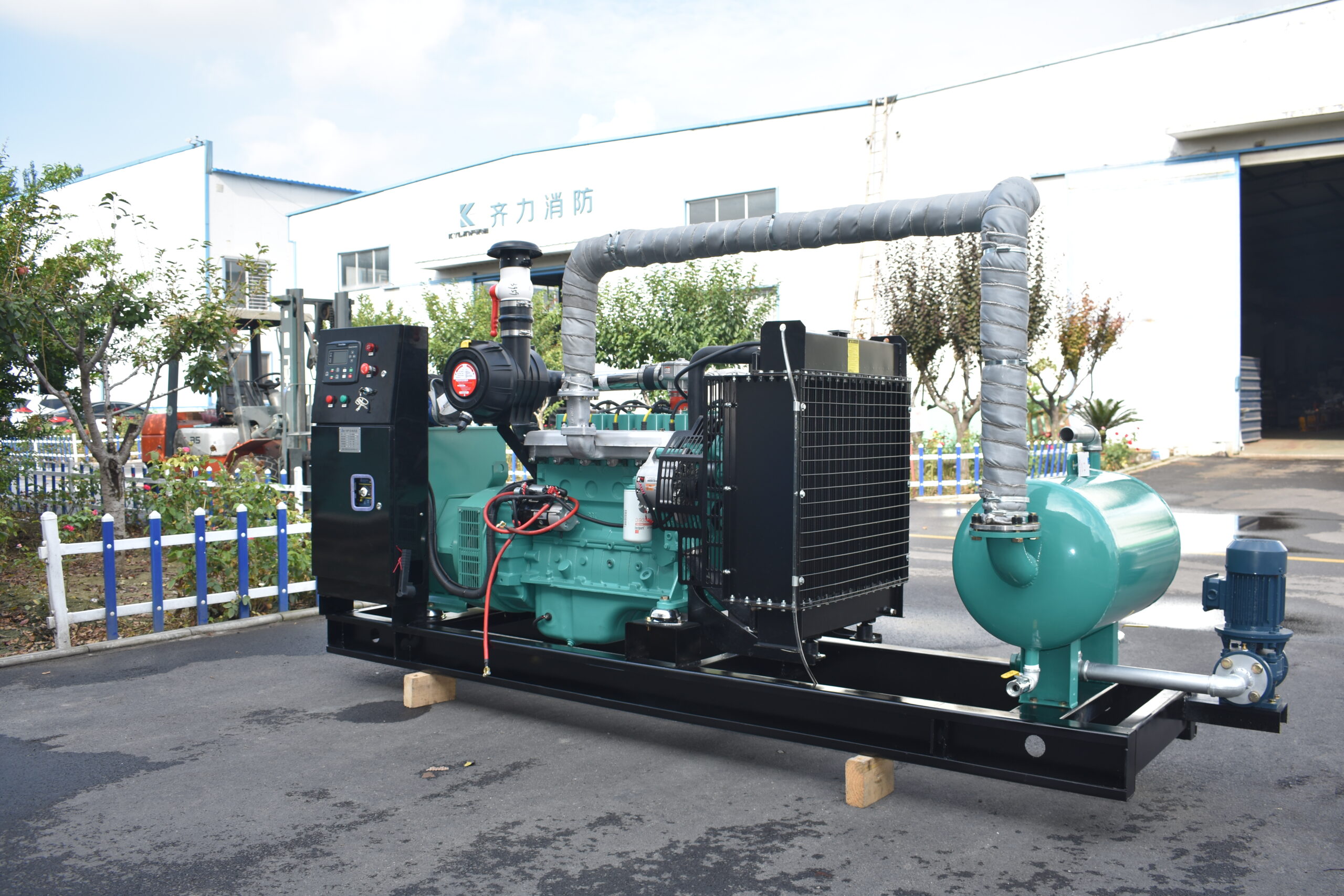

| Genset Model：DCEC100GST-GS | Steady State Voltage Regulation： ≤±0.5% |
| Rated Power：100kVA | Transient Voltage Regulation： ≤±15% |
| Standby Power : 110kVA | Voltage Fluctuation：≤±0.5% |
| Voltage：400V/230V | Voltage Waveform Distortion Degree： ≤5% |
| Rated Current：144A | Voltage Settling Time： ≤1.5sec |
| Rated Speed (r/min)：1500/1800 (50/60Hz) | Steady State Frequency Regulation： ≤±2% |
| Start Method：electrical starting | Transient Ffrequency Regulation： ≤±5% |
| Fuel Consumption at 100% Load：0.3m³/Kw·h | Frequency Settling Time：≤ 3sec |
| Frequency Fluctuation Rrate(%):≤±0.5% | Noise(LP1m): 100dB（A） |
| Size(mm): 2200*900*1400 | Weight：1140KG |
| Gas Engine Parameters ： | |
| Brand: Cummins |
| Model: B6.7N |
| Rated Power: 110kVA |
| Speed regulation mode: electronic speed regulation/mechanical speed regulation |
| Displacement: 5.9L |
| Bore*Stroke: 102mm*120mm |
| Type: 4 Stroke, Water Cooling, Spark Ignition, 24V DC Starting |
| Cooling method: closed water cooling |
| Starting mode: DC24V electric start |
| Rated Speed (r/min)：1500/1800 (50/60Hz) |
| Alternator Parameters: | |
| Brand: Faraday |
| Model: FD3A |
| Output frequency: 50Hz / 60Hz |
| Voltage: 400V/230V |
| Protection Level/Insulation Class：IP23/H |
| Excitation mode: Self-excited, Brushless, AVR |
| Phase/Connection：3 Phase 4 Wire, Y-connection, 0.8 Power Factor (Cosφ) |
| Control System：The standard control panel is with functions including manual keys, alarms, protections, auto start and shut down, showing running parameters in LCD Display by DEIF SGC420 Controller. |
| Options：Special requirements for Container, ATS, Synchronizing Parallel panels and CHP are available for options. |
| The standard configuration of the generator set is as follows: | |
| Ø Direct injection internal combustion engine (diesel); |
| Ø AC synchronous generator (single bearing); |
| Ø Suitable for environment: 40°C-50°C radiator water tank, belt-driven cooling fan, fan safety cover; |
| Ø Power generation output air switch, standard control panel; |
| Ø Steel common base of the unit (including: vibration damping rubber pad of the unit); |
| Ø Dry air filter, diesel filter, lubricating oil filter, starting motor, and equipped with self-charging generator; |
| Ø starting battery and battery starting connecting cable; |
| Ø Industrial silencers and standard parts for connections |
| ØRandom data: diesel engine and generator original technical documents, generator set manuals, test reports, etc. |
| Optional Accessories: | |
| Ø Oil, diesel, water jacket heater, anti-condensation heater | Ø Split daily fuel tank, integrated base fuel tank |
| Ø Battery float charger | Ø Rainproof unit (cabinet) |
| Ø Self-protection, self-starting unit control panel | Ø Silent unit (cabinet) |
| Ø With “three remote control” function unit control screen | Ø Mobile Trailer Power Station (Cabinet Trailer) |
| ØATS automatic load conversion screen | Ø Silent mobile power station (cabinet trailer) |
| Warranty period: | |
| 12 months or 1,500 hours of cumulative operation after the commissioning and acceptance of the unit (domestic); |
| Due to product quality problems, free maintenance or replacement parts are implemented, and lifelong paid services are provided! |
| (Wearing parts, common parts, man-made damage, negligent maintenance, etc. are not covered by the warranty) |
| If it is adjusted by the original factory, the original warranty regulations will be implemented! |
| Executive Standards: |
| Quality management system ISO9001 |
| The industry implementation standard GB/T2820.1997 |
| Shipping Method: |
| Door-to-door pick-up, special car delivery, car stowage, etc |
